Product Details
- Product Dimensions: 4.7 x 3.1 x 6.2 inches ; 1.4 pounds
- Shipping Weight: 1.8 pounds (View shipping rates and policies)
- Shipping: Currently, item can be shipped only within the U.S.
- ASIN: B002G1YPH0
- Item model number: RR-B10-212P-G1
By : Cooler Master
List Price :
Price : $25.99
You Save : $4.00 (13%)
Product Description
From the Manufacturer
From the Manufacturer
Succeeding the popular Hyper 212, the Hyper 212 Plus carries on the legacy of providing a great balance of performance and noise level during high and low speed operations. Hyper 212 Plus is Cooler Master's first cooler to be equipped with an all-in-one mounting solution that includes LGA 1156 and 1366. Direct Contact heat-pipe is now also utilized in this latest update.
- Well-balanced cooling performance:
- Computer aided heatsink design provides fin optimization with perfect balance between high and low speed operation.
- 4 x Direct Contact heat-pipes for seamless contact between CPU surface and cooler.
- Wide-range PWM fan with unique blade design for excellent airflow.
- Upgradable to dual fans and swapping of fans with extra fan-clips included.
- Fan mounting using clips for easy installation and swapping.
- Versatile all-in-one mounting solution for Intel Socket LGA775/1156/1366 and AMD Socket 939/AM2/AM3.
- Silent operation with minimal noise level at 13 dBA.
Aluminum fins with 4 x Direct Contact heat-pipes to provide excellent heat dissipation
Compatible with Intel Socket LGA 775/1156/1366 and AMD Socket 939/AM2/AM3
Capability for optional 2nd fan to increase cooling performance
New 120mm PWM fan with wide RPM range and anti-vibration rubber pads
- All Intel Socket 775/1156/1366 CPU
- Intel Core™ i7 Extreme
- Intel Core™ i7
- Intel Core™ 2 Extreme
- Intel Core™ 2 Quad
- Intel Core™ 2 Duo
- Intel Pentium
- Intel Celeron
- All AMD Socket 939/AM2/AM3 CPU
- AMD Phenom™ II X4
- AMD Phenom™ II X3
- AMD Phenom™ X4
- AMD Phenom™ X3
- AMD Athlon™ X2
- AMD Athlon™
- MD Sempron™
Model
RR-B10-212P-GP
CPU Socket
Intel®:Socket LGA1366 / 1156 / 775AMD™:Socket AM3 / AM2 / 940 / 939
CPU Support
Intel®:Core™ i7 Extreme / Core™ i7 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® / Celeron®AMD™:Phenom™ II X4 / Phenom™ II X3 / Phenom™ X4 / Phenom™ X3 / Athlon™ X2 / Athlon™ / Sempron™
Dimension
120 x 79.7 x 158.5 mm (L x W x H)
Weight
1.38 lbs; 626g
Heat Sink Material
Aluminum fin
Heat Pipes
4 pcs
Fan Dimension
120 x 120 x 25 mm
Fan Speed
600 - 2000 R.P.M. (PWM)
Fan Airflow
21.2 - 76.8 CFM
Air pressure (mmH2O)
0.40 - 3.90 mmH2O
Bearing Type
Long life sleeve bearing
Fan Life Expectancy
40,000 hours
Fan Noise Level (dB-A)
13 - 32 dBA
Connector
4-pin
UPC Code
884102005077

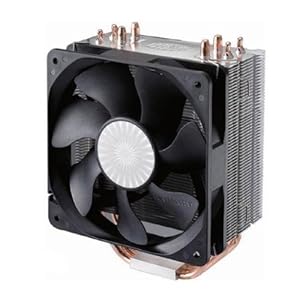

Cooler Master Hyper 212 Plus RR-B10-212P-G1 120mm Sleeve CPU Cooler
Cooler Master Hyper 212 Plus 120mm Sleeve CPU Cooler, RR-B10-212P-G1
Technical Details
- Computer aided heat sink design provides fin optimization with perfect balance between high and low speed operation.
- Fan mounting using clips for easy installation and swapping Versatile all-in-one mounting solution for Intel Socket.
- Intel LGA1366/ 1156/ 1155/ 775; AMD AM3/ AM2/ AM2.
- Material: Aluminum Fin, w/ 4 heat pipes Connector: 4pin.
- Phenom II X4/ Phenom II X3/ Phenom X4/ Phenom X3/ Athlon X2/ Athlon/ Sempron.
Customer Reviews
The Hyper 212+ is a must-have heatsink for your CPU if you do not wish to pay for pricy water cooling.
-Price
Only $30, when most high-end heatsinks are priced at $50+ on NewEgg. If you want your CPU to run cooler for a cheap price, the Hyper 212+ is perfect.
-Instructions
The manual has two to three pictures each step, along with the most minimal of a sentence that describes what the pictures want you to do. You're better off watching the youtube video that Cooler Master uploaded.
-Installation
Once again, I strongly advise just throwing out the given instructions and view the video that Cooler Master has uploaded to youtube. Installing was a bit tricky at first, one of the nuts refused to go the entire length of the screw, needed pliers to force it the rest of the way. After attaching the backplate, the rest of the process went very smooth.
-Performance
I installed this heatsink to a week-old i5 750 CPU. Temps were running 45C idle with stock heatsink. After applying the Hyper 212+, the i5 dropped to 28C idle. I have yet to encounter temperatures above 35C on heavy load. Overclocking the i5 to 3.6GHz, the temps rise to 37C idle, which is simply amazing. I previously tried to O/C with the i5's stock heatsink, and the temp skyrocketed to 65C after booting Windows.
-Additional Info
Comes with a 120mm fan attached onto the heatsink. The metal clips make it very easy to remove the fan for heatsink installation. Has an extra two metal clips in case you would like to add an additional fan on the opposite side for more airflow. In terms of noise, my case fans are louder than the packaged 120mm fan. The PC is positioned about 10 feet away from my bed, and I have no trouble sleeping because of noise.
The 212+ also came with its own thermal paste, a great little addition for those not wanting to spend $10 for a couple uses.
The only negative standpoint I would have with this heatsink is the size. Luckily, my case has a sidepanel window which bows out, allotting JUST enough clearance for the Hyper 212+ to fit. Make sure you measure the inside of your case before purchasing!
Other than water cooling, I have yet to purchase a heatsink that decreases the temperature by such a drastic amount. It is a great product for a cheap price, and I will be purchasing this heatsink for every new rig I build.
This is a great CPU cooler for the price. I can push my i5-750 to 4 GHz while keeping temperatures around 60C. I've chosen to throttle it back to 3.6 GHz for 24/7 usage so I can run at a more modest 1.3V and keep the fan at 80% where it's nearly inaudible. The sites that test lots of CPU coolers have shown this to have good cooling and noise performance.
My Gigabyte motherboard doesn't offer much control over the fan speed so I'm using the free SpeedFan program to control the speed for different temperature levels. At idle the processor is 38C and the fan is set to a silent 70%. At full load the processor is 53C and the fan is barely audible at 80%. I like my computer to be quiet.
The mounting bracket is a bit fussy but I had it mounted in 10 minutes or so. It has a backplate which is a good thing because it allows a tighter clamp and puts less stress on the motherboard. I'm cheap and I used the thermal paste that came with it.
Cooler Master Hyper 212 Plus 120mm Sleeve CPU Cooler, RR-B10-212P-G1
